Monitor GDS Data
- Ignition switch OFF, connect GDS.

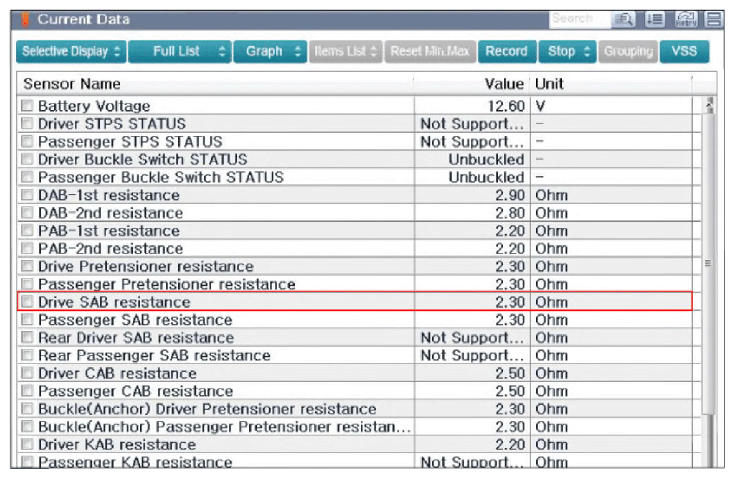

- Ignition switch ON and the engine OFF, select "Current Data" mode.
- Monitor the "Driver SAB resistance" parameter on the GDS.
Specification : Resistance of "Driver SAB" is between 1.0Ω and 7.2Ω
Reference : In a case of an open in the "Driver SAB" circuit: FAIL
In a case of a short to battery in the "Driver SAB" circuit: FAIL
In a case of a short to ground in the "Driver SAB" circuit: FAIL
- Is parameter displayed within specifications?
YES
- Displaying nothing (no DTC) or DTC with label "H" (historical) shows that Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared.
Thoroughly check shorting bar/shorting bar release pin and connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "WIRING INSPECTION " procedure.
