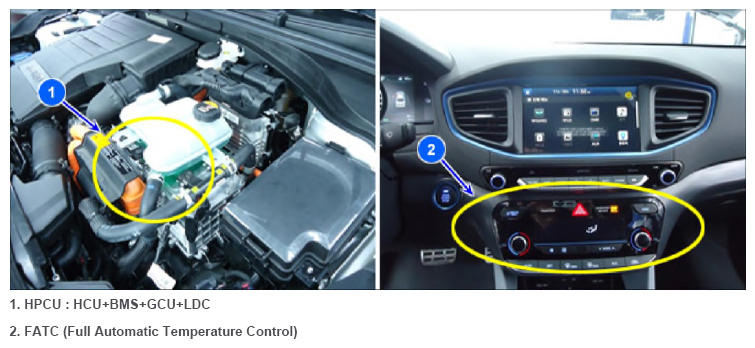

Component Location
 Courtesy of HYUNDAI MOTOR AMERICA
|
NOTE:
HPCU (Hybrid Power Control Unit)
HCU (Hybrid Control Unit): "HPCU"
MCU (Motor Control Unit)
GCU (Generator Control Unit)
LDC (Low DC/DC Converter)
FATC (Full Automatic Temperature Control): A/C Control Module
