Component Location

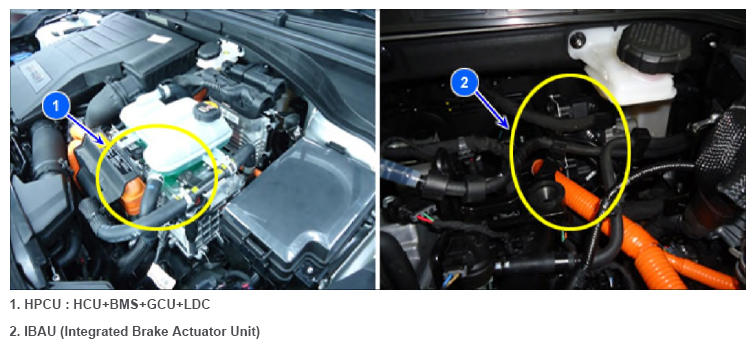

G13841353Courtesy of HYUNDAI MOTOR AMERICA
NOTE: HPCU (Hybrid Power Control Unit)
HCU (Hybrid Control Unit): "HPCU"
MCU (Motor Control Unit)
GCU (Generator Control Unit)
LDC (Low DC/DC Converter)
IBAU (Integrated Brake Actuator Unit)
