Component Location

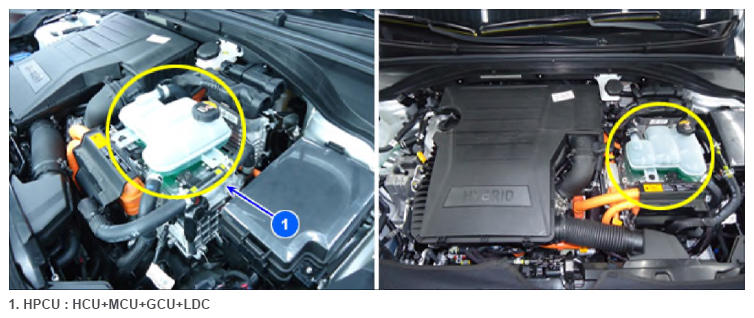

G13841347Courtesy of HYUNDAI MOTOR AMERICA
NOTE: HPCU (Hybrid Power Control Unit)
HCU (Hybrid Control Unit)
MCU (Motor Control Unit)
GCU (Generator Control Unit)
LDC (Low DC/DC Converter)
