Monitor DTC Status
- Ignition ON (SSB LED "BLUE") & Vehicle "STOP".
- Connect GDS and select "DTC Analysis" mode.

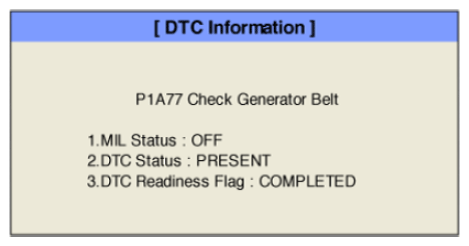

- Click "DTC Status" on the menu bar to view DTC information.
- Confirm that the "DTC Readiness Flag" indicates "COMPLETED". If not, drive the vehicle within conditions noted in Freeze Frame Data or Enable Conditions.
- Read the "DTC Status" parameter.
- Is parameter displayed "Present fault"?
YES
- Be careful especially when you check belt. Because the Generator (HSG) belt can be oprated when mode is changed from EV Mode to HEV mode.
- Go to Next procedure.
NO
- Fault is intermittent caused by poor contact in the sensor's and/or Control module's connector or was repaired and Control module's memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Vehicle Repair " procedure.
