DTC P1679: Immobilizer EMS Data Fail (Data Frame, CS, Message Error)
>>

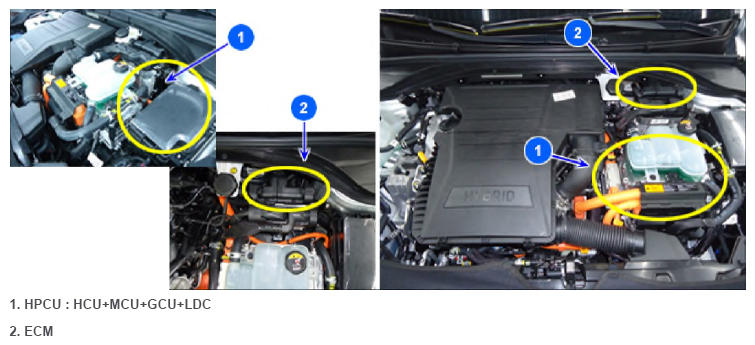

Component Location
Component Location
Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
HPCU (Hybrid Power Control Unit)
HCU (Hybrid Control Unit)
MCU (Motor Control Unit)
GCU (Generator Control Unit)
LDC (Low DC/DC Converter)
Courtesy of HYUNDAI MOTOR AMERICA
