Actuator Test Check

  1. Connect GDS to Data Link Connector (DLC)
  2. IG key "ON".
  3. Perform Actuator Test with GDS.

    Active Air Flap Potentiometer Status  : 20% or 80% ± 5%

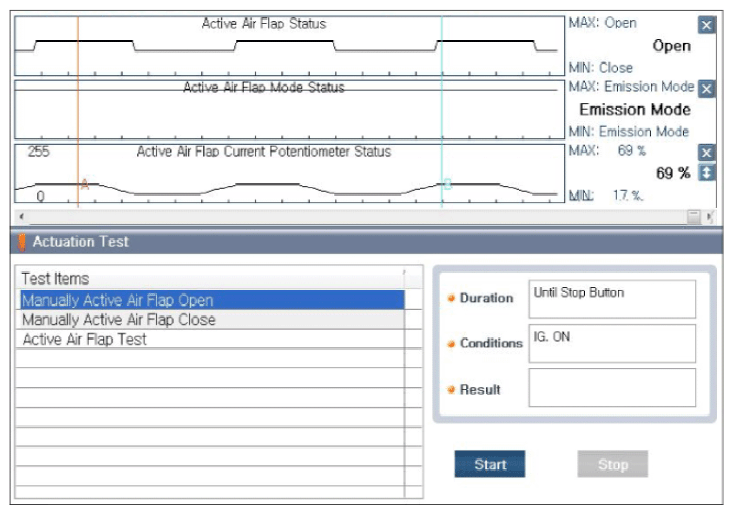

    G13839142Courtesy of HYUNDAI MOTOR AMERICA
  4. Is the operation in normal?

    YES

    • Go to next procedure.

    NO

    • Substitute with a known-good A.A.F and check for proper operation. If the problem is corrected, replace A.A.F and then go to "Verification of Vehicle Repair " procedure.
