Inspection of actuator operation
- Connect the GDS to the self-diagnostic connector.
- Turn the ignition key on

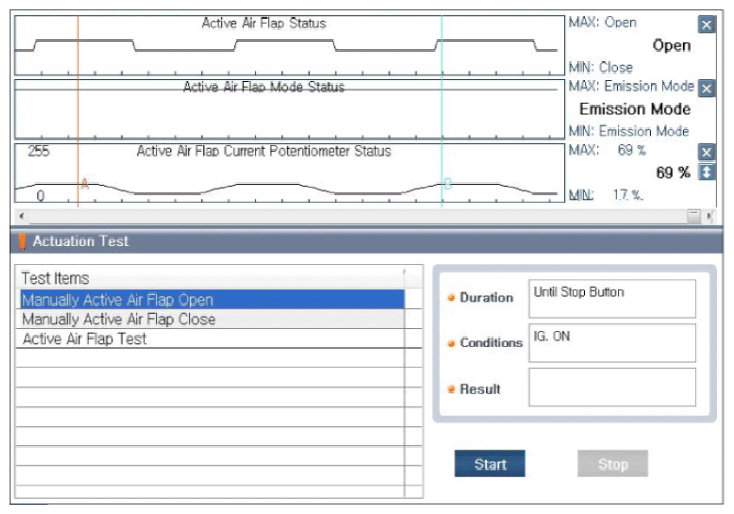

- Move to the actuator item using the GDS and carry out actuation.
- Does it operate normally?
YES
- Carry out the "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Replace with a normal A.A.F. If the operation is normal, replace the A.A.F and carry out the "VERIFICATION OF VEHICLE REPAIR " procedure.
