Monitor GDS Data 2

  1. IG "ON".
  2. Select Current Data in the "AAF(Active Air Flap)
  3. Check current after maintaining EV mode and engine idle status

    Active Air Flap Potentiometer Status :  20% or 80% ± 5%

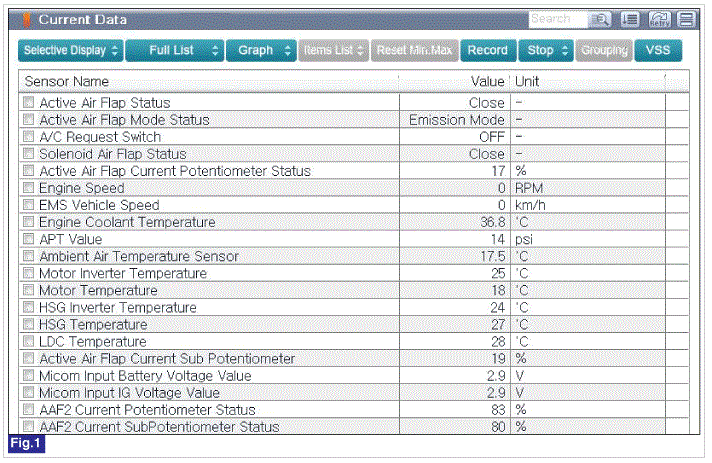

    G00599965Courtesy of HYUNDAI MOTOR AMERICA
  4. Is the displayed current output normal?

    YES

    • Fault is intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and Active Air Flap Actuator memory is not cleared yet. Thoroughly check all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.

    NO
