Actuator Test Check

1. Connect GDS to Data Link Connector(DLC)
2. IG key "ON"

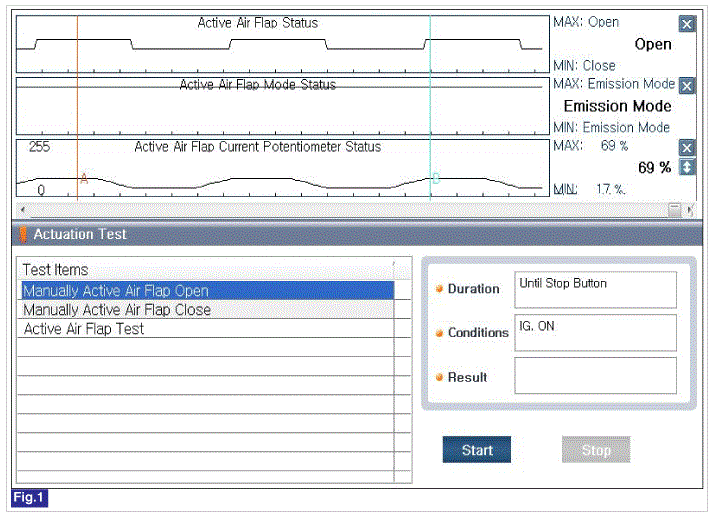

3. Perform Actuator Test with GDS

   Courtesy of HYUNDAI MOTOR AMERICA

4. Is the operation in normal?

YES

• Go to next procedure.

NO

• Substitute with a known-good A.A.F and check for proper operation. If the problem is corrected, replace A.A.F and then go to "Verification Of Repair " procedure.
