Diagnosis with GDS
- The body electrical system can be quickly diagnosed failed parts with vehicle diagnostic system (GDS).
The diagnostic system (GDS) provides the following information.
- Self diagnosis: Checking the failure code (DTC) and display
- Current data: Checking the system input/output data state
- Actuator test: Checking the system operation condition
- Additional function: Other controlling such as he system option and zero point adjustment
- Select the "Car Model" and the system to be checked in order to check the vehicle with the tester.
- Select the "Body Control Module (BCM)" to check the "Cluster Module (CLU)".

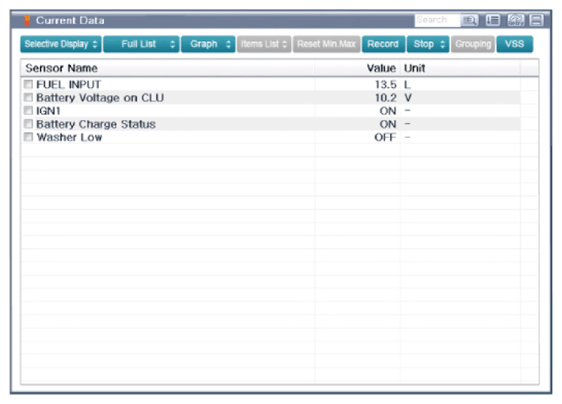

- Select the "Current Data" menu to search the current state of the input/output data.
The input/output data for the sensors corresponding to the cluster module (CLU) can be checked.
- To check the input value of cluster illumination, select option "Actuation Test".
