Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the lower crash pad.

    (Refer to Body - "CRASH PAD ")

  3. Remove the knee airbag.

    (Refer to Restraint - "AIR BAG MODULE ")

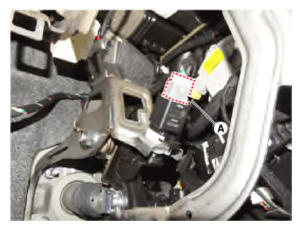

  4. Disconnect the stop lamp switch connector (A).
    G13850580Courtesy of HYUNDAI MOTOR AMERICA
  5. Pull the locking plate (A) as indicated by the arrow.
    G13850581Courtesy of HYUNDAI MOTOR AMERICA
  6. Turn stop lamp switch 45° counterclockwise and remove it.
    G13850582Courtesy of HYUNDAI MOTOR AMERICA
  7. Inspect a removed stop lamp switch along the below procedures.
    1. Confirm a normal connection with terminal part
      • A confirmation can be made to see if the connector has been secured properly and if a connection mark is present.
    G13850583Courtesy of HYUNDAI MOTOR AMERICA
