Repair Procedures: Installation

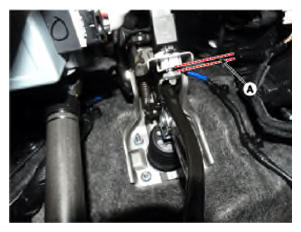

- Fix the brake pedal arm and insert fully the stop lamp switch as hiding contact part. Turn stop lamp switch 45° clockwise and install it.

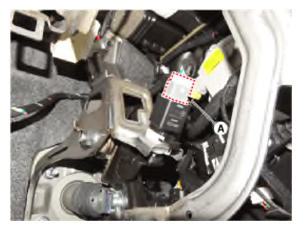

- Assemble locking plate (A) by pushing.
- Confirm the gap between stop lamp switch and bracket.
Stop lamp clearance : 1.0 - 2.0 mm (0.04 - 0.08 in.)
- If the gap between stop lamp switch and bracket is not 1.0 - 2.0 mm (0.04 - 0.08 in), perform the above process again.
- Connect the stop lamp switch connector.
- Remove the knee airbag.
(Refer to Restraint - "AIR BAG MODULE ")
- Install the lower crash pad.
(Refer to Body - "CRASH PAD ")
- Connect the negative (-) battery cable.
