4. Inspect The Stop Lamp Circuit

Connect probe to each terminal wire and confirm oscilloscope waveform.

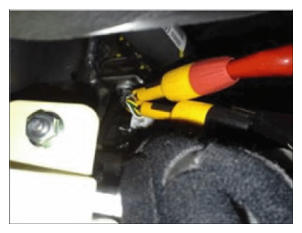

[Stop Lamp Switch Input/Output]

G13850594Courtesy of HYUNDAI MOTOR AMERICA

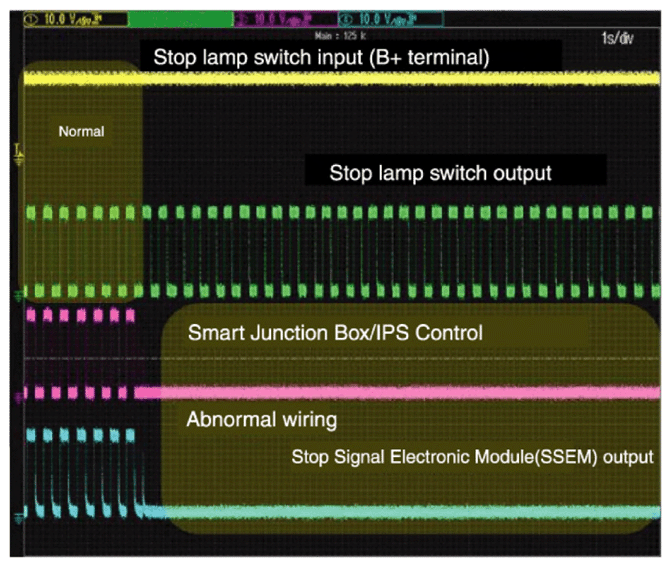

[Oscilloscope Waveform Screen]

G13850595Courtesy of HYUNDAI MOTOR AMERICA
