3. Inspection Of Connector By Each Part

Check to see whether or not each connector has been damaged, or terminal surge, or incomplete connection has taken place

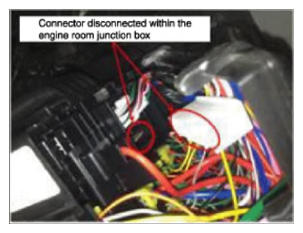

[Engine Room Junction Box]

G13850592Courtesy of HYUNDAI MOTOR AMERICA

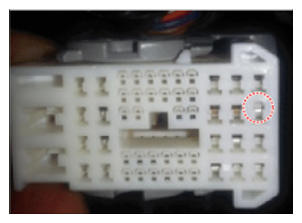

[ABS/VDC Control Module]

G13850593Courtesy of HYUNDAI MOTOR AMERICA
