EPB Apply

  1. Loosen the wheel nuts slightly.

    Raise the vehicle, and make sure it is securely supported.

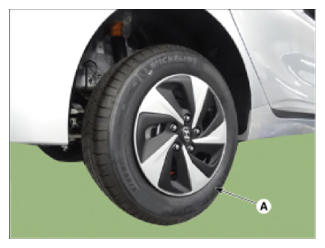

  2. Remove the rear wheel and tire (A) from the rear hub.
    G13850560Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Be careful not to damage the hub bolts when removing the rear wheel and tire (A).

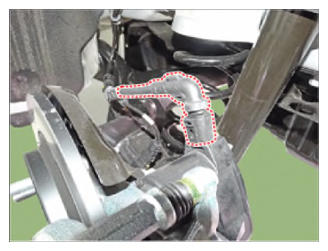

  3. Disconnect the EPB connector.
    G13850561Courtesy of HYUNDAI MOTOR AMERICA

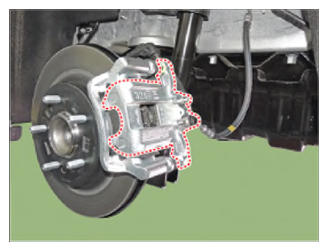

  4. Loosen the guide rod bolt and then remove the caliper body.
    G13850562Courtesy of HYUNDAI MOTOR AMERICA

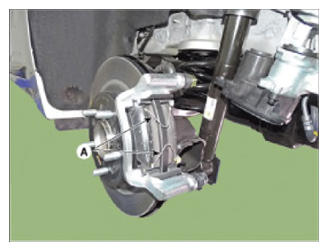

  5. Remove the pad return spring (A).
    G13850563Courtesy of HYUNDAI MOTOR AMERICA

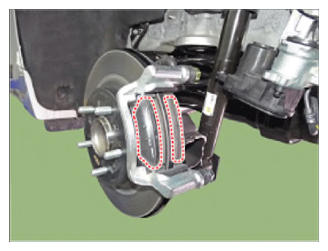

  6. Remove the brake pad.
    G13850564Courtesy of HYUNDAI MOTOR AMERICA

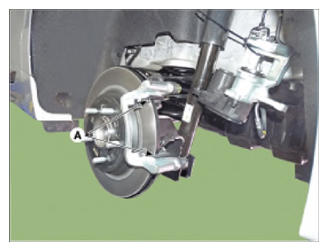

  7. Remove the pad retainer (A).
    G13850565Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Return spring (A), Pad retainer (B), inner shim (C) and pad (D) must be replaced with new ones whenever pads are replaced.
      G13850566Courtesy of HYUNDAI MOTOR AMERICA
  8. Install the pad return spring (A).
    G13850567Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Pad return springs must be replaced with new ones whenever pads are replaced.
    • Technicians should be careful not to deform pad return springs.
    • When pad return springs are deformed, it may cause improper braking, more fuel consumption.
  9. Install the caliper body (A) then tighten the guide rod bolt (B).

    Tightening torque:

    21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb-ft)

    G13850568Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:

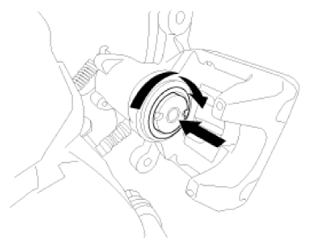

    • Rotate the caliper piston and push the direction of the arrow.
      G13850569Courtesy of HYUNDAI MOTOR AMERICA
  10. Connect the EPB connector.
    G13850570Courtesy of HYUNDAI MOTOR AMERICA
  11. Install the rear wheel and tire (A) from the rear hub.

    Tightening torque:

    107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

    G13850571Courtesy of HYUNDAI MOTOR AMERICA
