EPB None Apply

Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.

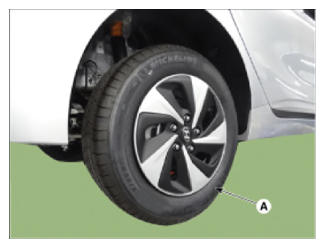

Remove the rear wheel and tire (A) from the rear hub.
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Be careful not to damage the hub bolts when removing the rear wheel and tire (A).

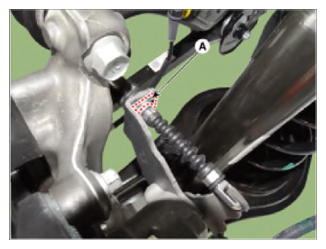

Remove the parking brake cable fixed clip (A).

Courtesy of HYUNDAI MOTOR AMERICA

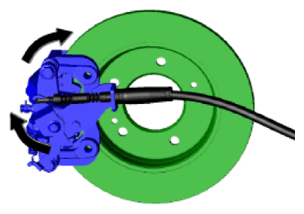

Pull the operating lever as a direction of arrow in the illustration below and then remove the parking brake cable.

Courtesy of HYUNDAI MOTOR AMERICA

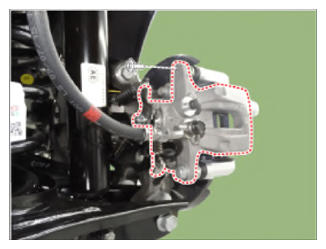

Loosen the guide rod bolt and then pivot the caliper body up out of the way.
Tightening torque:

21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

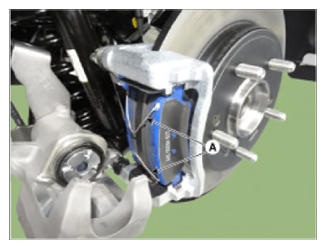

Remove the pad return spring (A).

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Pad return springs must be replaced with new ones whenever pads are replaced.
- Technicians should be careful not to deform pad return springs.
- When pad return springs are deformed, it may cause improper braking, more fuel consumption.

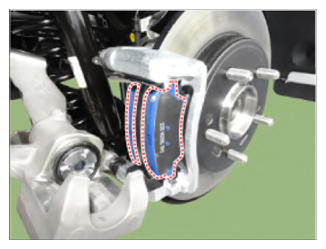

Separate the brake pad and pad retainer.

Courtesy of HYUNDAI MOTOR AMERICA

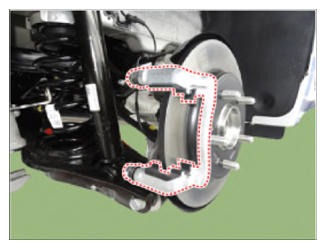

Loosen the caliper mounting bolts and then remove the rear caliper assembly (A).
Tightening torque:

63.7 - 73.5 N.m (6.5 - 7.5 kgf.m, 47.0 - 54.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

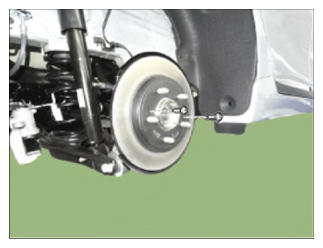

Remove the rear brake disc by loosening the screws.
Tightening torque:

4.9 - 5.9 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb-ft)
