Repair Procedures: Installation

  1. To install, reverse the removal procedure.

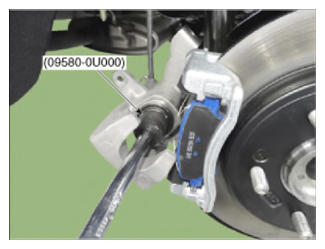

  2. Use a SST (09580-0U000) when installing the brake caliper assembly.
    G13850575Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Wind the piston into the caliper body until it is fully retracted.
    • Do not use any power assisted tools for this task.
  3. After installing, bleed the brake system.

    (Refer to "BLEEDING OF BRAKE SYSTEM ")
