Repair Procedures: Installation
- To install, reverse the removal procedure.

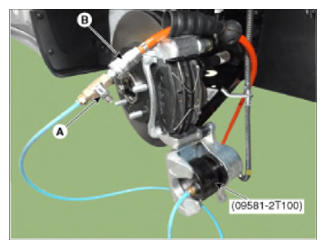

- Use a SST (09581-2T100) when installing the brake caliper assembly.NOTE:
- Connect an air hose (B) to the SST after confirming that the valve of the SST is surely closed.
Input the SST in the caliper and press the caliper piston while opening the valve of the SST slowly counter clock wise.
- Close the valve (A) of the SST and disconnect the air hose (B); then, open the valve again to get the rest of air out and remove the SST from the caliper.
- Connect an air hose (B) to the SST after confirming that the valve of the SST is surely closed.
- After installing, bleed the brake system.
(Refer to "BLEEDING OF BRAKE SYSTEM ")
