Home >> Hyundai >> 2021 >> Ioniq Hybrid SEL >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Brake System (HEV) >> Front Disc Brake >> Components And Components Location >> Components

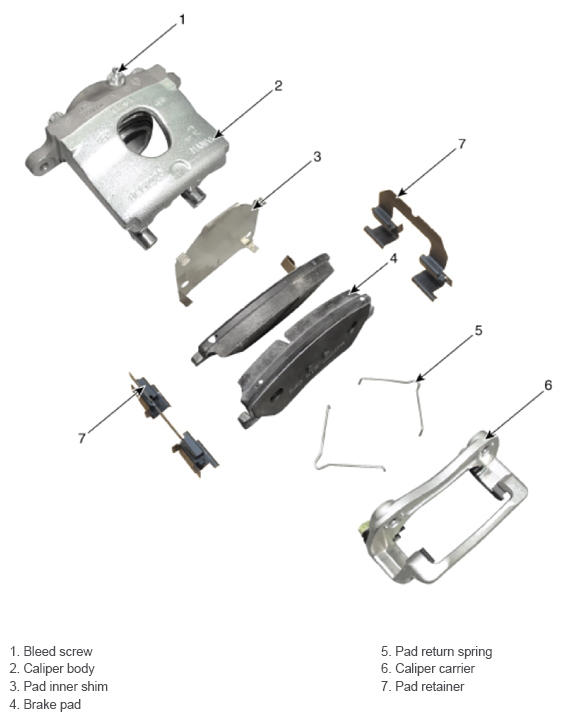

Components And Components Location: Components

G13850508

Courtesy of HYUNDAI MOTOR AMERICA
