Home >> Hyundai >> 2021 >> Ioniq Hybrid SEL >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Brake System (HEV) >> Brake Line >> Components And Components Location >> Components

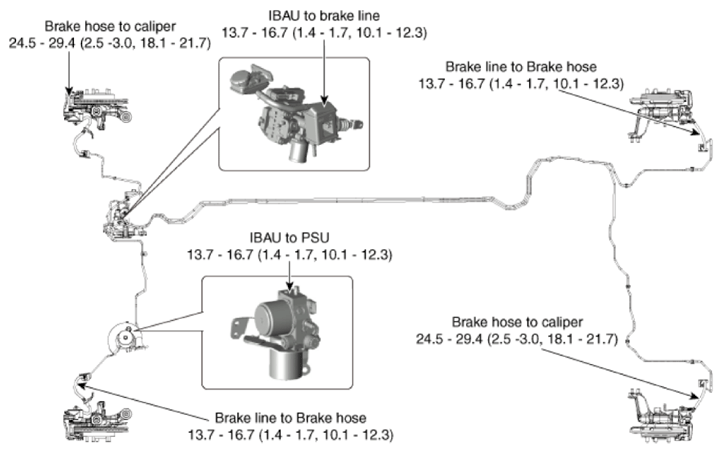

Components And Components Location: Components

G13850496

Courtesy of HYUNDAI MOTOR AMERICA
