Actuation Test
- Connect GDS to Data Link Connector (DLC).
- IG "ON".

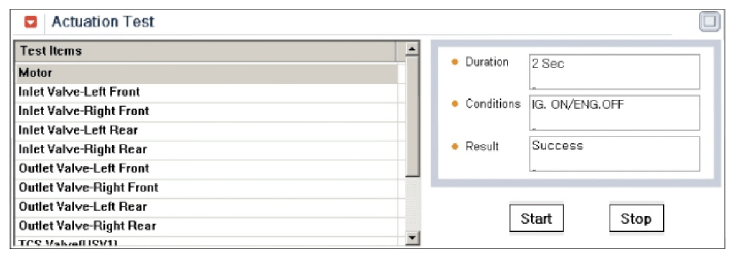

- Select the "Actuation Test" mode on the GDS.
- Inspect operating status of Motor with Actuation Test.
Specification: It's normal if operating sound is heard
- Does motor operate normally?
YES
- Fault is intermittent caused by poor connection and/or IBAU's connector. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair " procedure.
NO
- Go to next step.
