Actuation Test

  1. Connect GDS to Data Link Connector (DLC).
  2. IG "ON".
  3. Select the "Actuation Test" mode on the GDS.
  4. Inspect operating status of all valves with Actuation Test.

    Specification:  It's normal if operating sound is heard

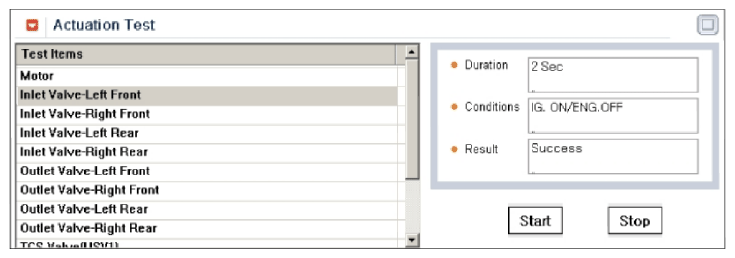

    G13840118Courtesy of HYUNDAI MOTOR AMERICA
  5. Does a Front left valve (in) operate normally?

    YES

    • Fault is intermittent caused by poor connection and/or IBAU's connector. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
