Brake Pedal Travel Sensor Calibration
- IG "ON", ENG "OFF".
- Stand the vehicle on a flat ground without any inclination.
- Don't press brake pedal.
- Connect GDS to Data Link Connector (DLC).

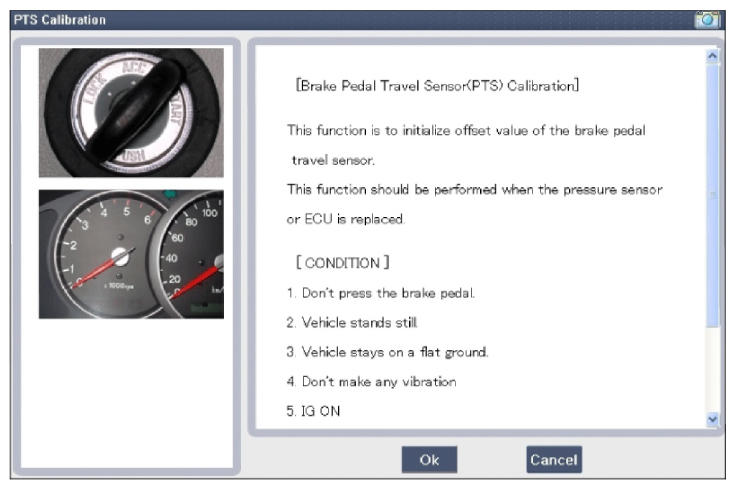

- Perform Brake Pedal Travel Sensor Calibration.
- Is "Brake Pedal Travel Sensor Calibration" completed normally?
YES
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- According to negative response from AHB, inspect wiring harness, BLS, etc.......
- If above check is OK, substitute with a known-good brake pedal pressure sensor and check for proper operation. If problem is corrected, replace brake pedal pressure sensor and then go to "Verification of Vehicle Repair " procedure
