Pedal Travel Sensor (PTS) Calibration
- Turn "ON" the ignition switch.
- Stop the vehicle horizontally at a flat place.
- Do not press the brake pedal.
- Connected the GDS to the vehicle.

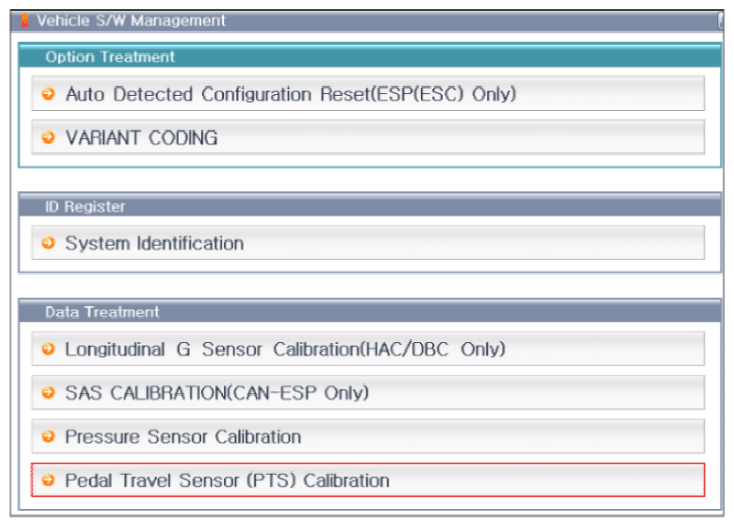

- Perform the PTS sensor calibration.
- Is "Brake Pedal Travel Sensor Calibration" completed normally?
YES
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- According to negative response from AHB, inspect wiring harness, BLS, etc.......
- If above check is OK, substitute with a known-good brake pedal pressure sensor and check for proper operation. If problem is corrected, replace brake pedal pressure sensor and then go to "VERIFICATION OF VEHICLE REPAIR " procedure
