Signal Waveform & Data

G13839929Courtesy of HYUNDAI MOTOR AMERICA
G13839930Courtesy of HYUNDAI MOTOR AMERICA

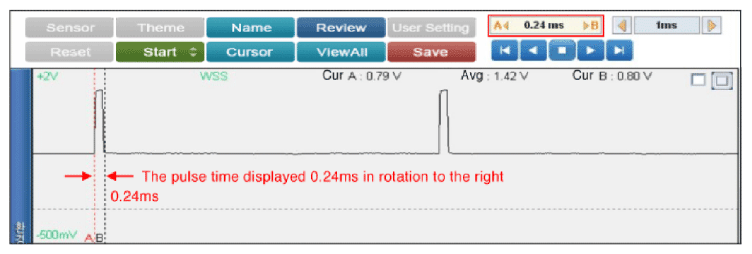

G13839931Courtesy of HYUNDAI MOTOR AMERICA
G13117318Courtesy of HYUNDAI MOTOR AMERICA

* Smart type wheel speed sensor is installed at rear axle of the SPAS applied vehicle.

G13117319Courtesy of HYUNDAI MOTOR AMERICA

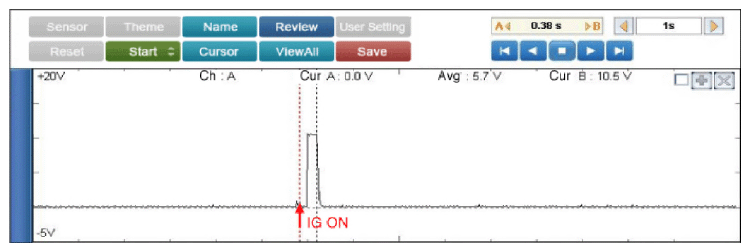

G13839932Courtesy of HYUNDAI MOTOR AMERICA
