Signal Waveform & Data

G13839910Courtesy of HYUNDAI MOTOR AMERICA

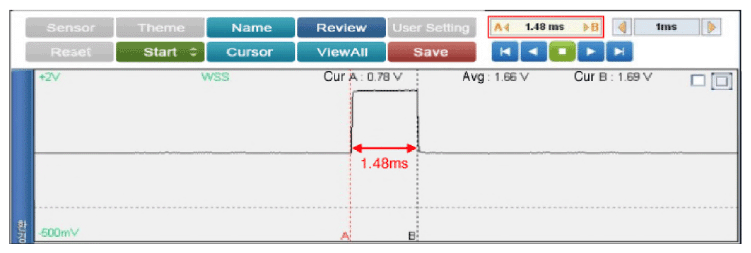

G13839911Courtesy of HYUNDAI MOTOR AMERICA

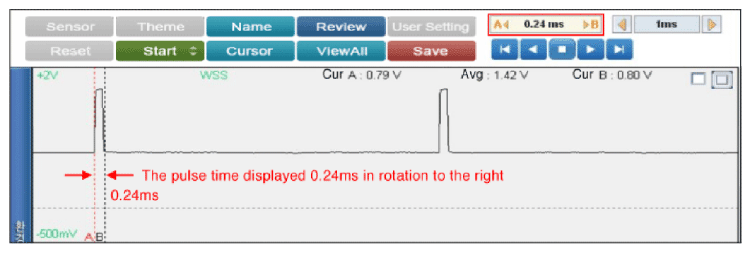

G13839912Courtesy of HYUNDAI MOTOR AMERICA
G13839913Courtesy of HYUNDAI MOTOR AMERICA

* Smart type wheel speed sensor is installed at rear axle of the SPAS applied vehicle.

G13839914Courtesy of HYUNDAI MOTOR AMERICA

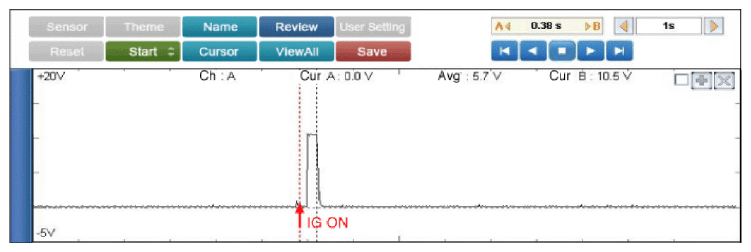

G13839915Courtesy of HYUNDAI MOTOR AMERICA
