Signal Waveform & Data

G13839900Courtesy of HYUNDAI MOTOR AMERICA

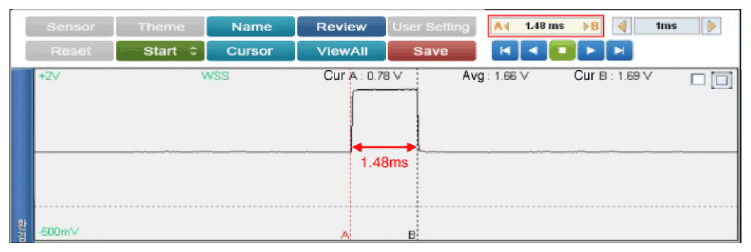

G13839901Courtesy of HYUNDAI MOTOR AMERICA

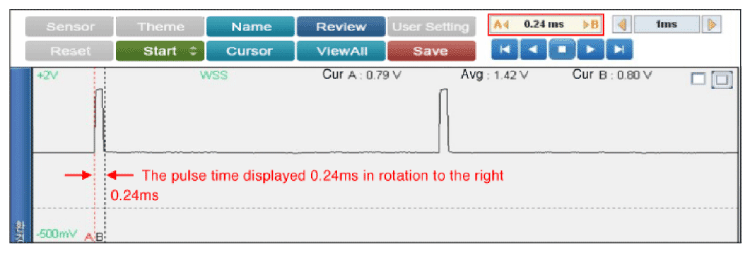

G13839902Courtesy of HYUNDAI MOTOR AMERICA
G13839903Courtesy of HYUNDAI MOTOR AMERICA

* Smart type wheel speed sensor is installed at rear axle of the SPAS applied vehicle.

G13839904Courtesy of HYUNDAI MOTOR AMERICA

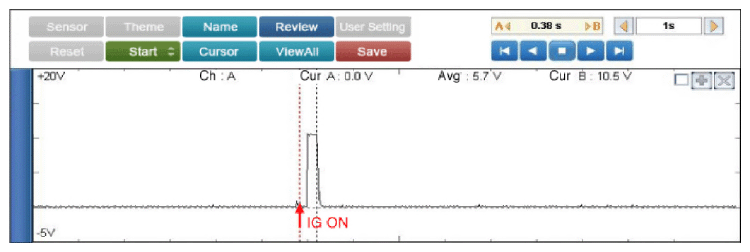

G13839905Courtesy of HYUNDAI MOTOR AMERICA
