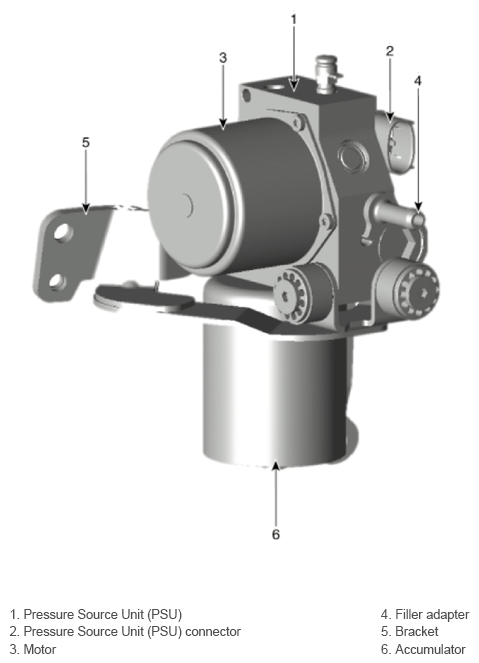

Components And Components Location: Components

G13850654Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
  • PSU (Presser Source Unit) must not be disassembled.
