AHB System Operation Principals

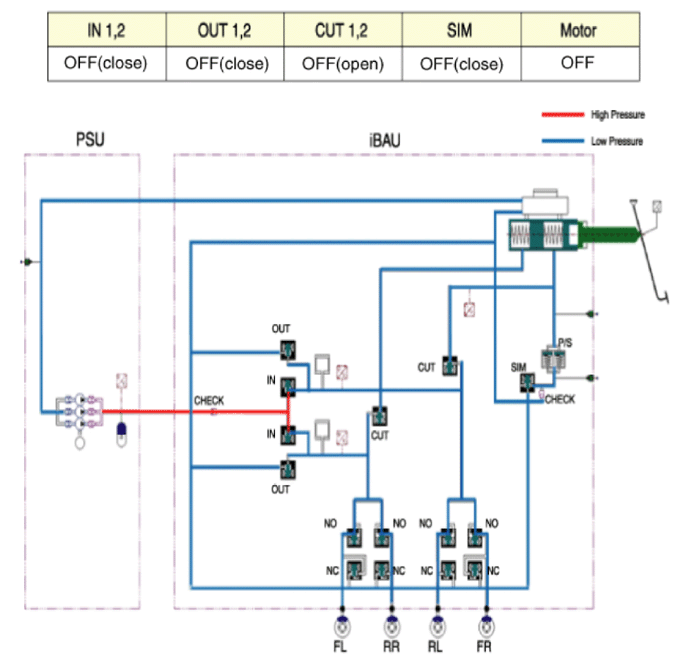

- Initial Status
High pressure (180 bar) between the PSU and the IBAU is generated consistently. Therefore, before removing the PSU or the IBAU, high pressure between them should be reduced for safety by conducting "High Pressure Release Mode" of GDS connected.
- Brake Operation

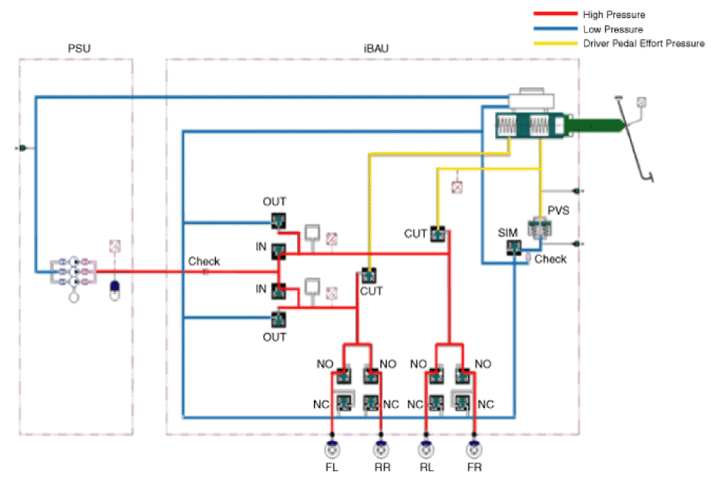

Apply Mode: During normal braking, Involve becomes ON and pantheon, the high pressure generated by PSU is supplied to a caliper on each wheel by IBAU and the brake operation is engaged.
Release Mode: During discharging brake, OUT valve opens and IN valve closes; then, the high pressure of brake oil return back to reservoir. At this time, CUT valve is ON and it prevents back flow of brake oil to master cylinder.

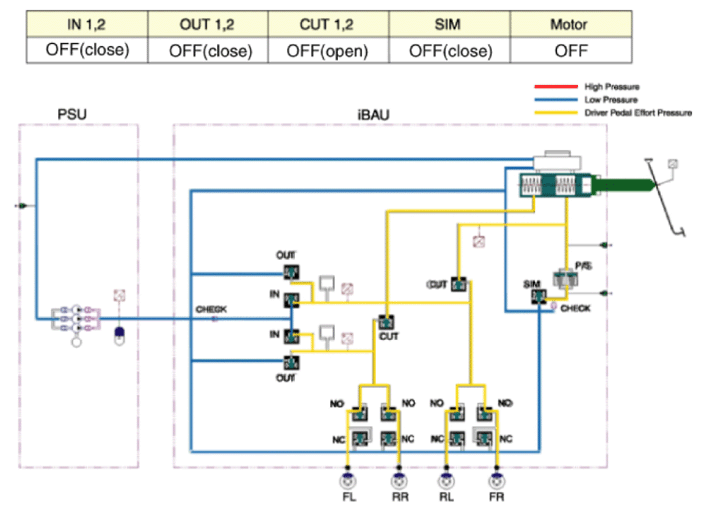

- Brake Malfunction
If the PSU or the IBAU is broken, IN valve and OUT valve are closed, and CUT valve is off. Therefore, the brake force is generated by only pressing a brake pedal manually by a driver.
