Repair Procedures: Inspection
- Disconnect the negative (-) battery terminal.

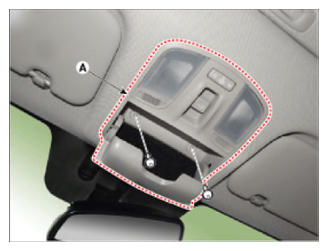

- Open the sunglass case cover from the overhead console and remove the 2 screws holding the overhead console.

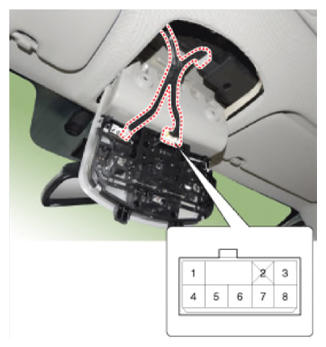

Disconnect the switch connector and Map lamp connector, and then remove the overhead console lamp (A).
- Check for continuity between the terminals.
