Repair Procedures: Inspection

Disconnect the negative (-) battery terminal.
Remove the roof trim.
(Refer to Body - "ROOF TRIM ")

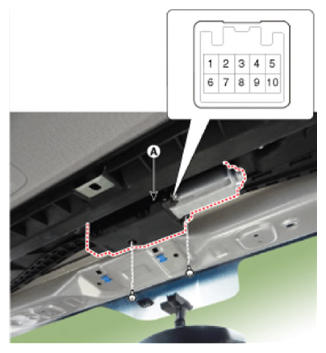

Disconnect the sunroof motor (A) connector.

Courtesy of HYUNDAI MOTOR AMERICA
Ground the terminals as shown below in table, and check that the sunroof unit operates.
NOTE:
- When inspecting the sunroof motor operation, sunroof motor and roller blind motor always should be connected.
Courtesy of HYUNDAI MOTOR AMERICA

Make these input tests at the connector. If any test indicates a problem, find and correct the cause, then recheck the system. If all the input tests prove OK, the sunroof motor must be faulty; replace it.

Terminal	Test condition	Test: Desired result
3	IG2 ON	Check for voltage to ground: There should be battery voltage.
1	Under all conditions	Check for continuity to ground: There should be continuity.
6	Under all conditions	Check for voltage to ground: There should be battery voltage.
