Center Pillar Upper Trim
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the center pillar lower trim.
(Refer to Interior Trim - "CENTER PILLAR TRIM ")
- Remove the anchor seat belt connector.
(Refer to Restraint - "EMERGENCY FASTENING DEVICE (EFD) ")

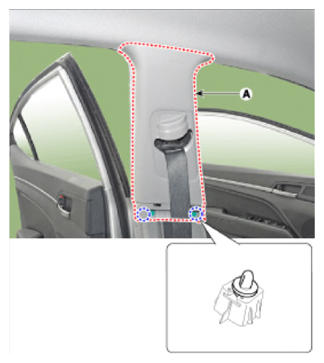

- Using a screwdriver or remover, remove the center pillar upper trim (A).
- To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
