Center Pillar Lower Trim

CAUTION:

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

Remove the front door scuff trim.
(Refer to Interior Trim - "DOOR SCUFF TRIM ")
Remove the rear door scuff trim.
(Refer to Interior Trim - "DOOR SCUFF TRIM ")
Carefully remove the front door body side weatherstrip.
Carefully remove the rear door body side weatherstrip.

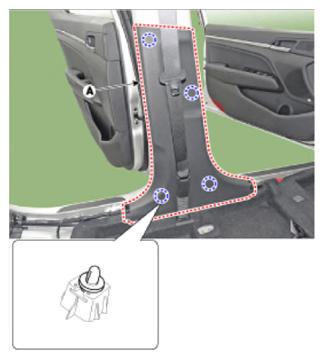

Using a screwdriver or remover, remove the center pillar lower trim (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
