Repair Procedures: Replacement

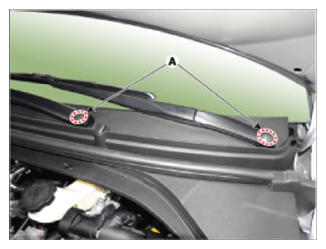

- Remove the plug hole.

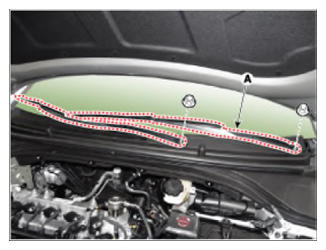

- Loosen the mounting nuts and remove the wiper arm (A).
Tightening torque:
22.6 - 26.5 N.m (2.3 - 2.7 kgf.m, 16.6 -19.5 lb-ft)

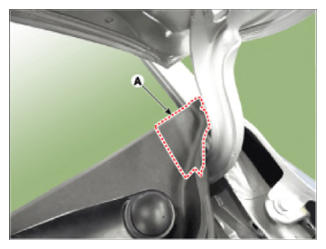

- Using a screwdriver or remover, remove the cowl side cover (A).

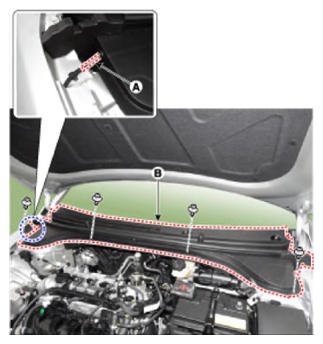

- Disconnect the washer nozzle (A).
- Detach the clips, then remove the cowl top cover (B).
- To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
