Repair Procedures: Removal

CAUTION:
  • Put on gloves to prevent hand injuries.
NOTE:
  • Use seat covers to avoid damaging any surfaces.
  1. Remove the tailgate trim.

    (Refer to Tailgate - "TAILGATE TRIM ")

  2. Remove the rear spoiler.

    (Refer to Body Side Molding - "REAR SPOILER ")

  3. Remove the inside rear combination lamp.

    (Refer to Body Electrical System - "REAR COMBINATION LAMP ")

  4. Disconnect the hot wire connector (A).
    G13187899Courtesy of HYUNDAI MOTOR AMERICA
    G13187900Courtesy of HYUNDAI MOTOR AMERICA

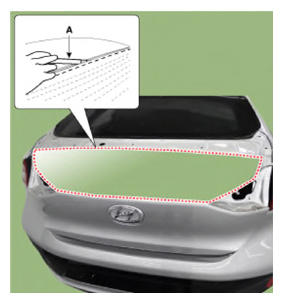

  5. Using a cutter (A) knife, carefully remove the tailgate lower glass.
    G13187901Courtesy of HYUNDAI MOTOR AMERICA
  6. Cut off the sealant on the edge (B) while pulling the piano wire (A) to the left and right.
    CAUTION:
    • Put on gloves to protect your hands.
    • Heat may occur when working on the wires. Be careful not to burn your hands.
    • Be careful not to disconnect the piano wire.
      G13187902Courtesy of HYUNDAI MOTOR AMERICA
  7. Put in a piano wire (A) through the corner of the tailgate lower glass and insert wire grips into both ends of the wire.
    G13187903Courtesy of HYUNDAI MOTOR AMERICA
  8. Cut off the sealant on (A-A), (B-B), (C-C), while pulling a piano wire (A) to the left and right.
    CAUTION:
    • Put on gloves to protect your hands.
    • Heat may occur when working on the wires. Be careful not to burn your hands.
    • Be careful not to disconnect the piano wire.
      G13187904Courtesy of HYUNDAI MOTOR AMERICA
  9. Remove the tailgate lower glass (A).
    G13187905Courtesy of HYUNDAI MOTOR AMERICA
