Glass Adjustment

Information

• Check the glass run channel for damage or deterioration, and replace them if necessary.

1. Remove the rear door trim.

   (Refer to Rear Door - "REAR DOOR TRIM ")

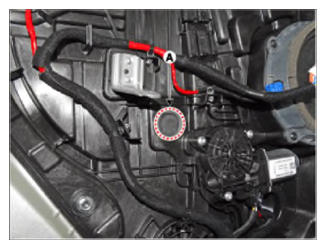

2. Separate the mounting plug hole (A) from the rear door module.

   Courtesy of HYUNDAI MOTOR AMERICA

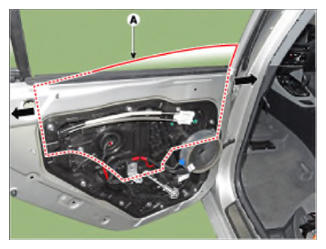

3. After loosening the glass mounting bolts, adjust the spacing of the glass (A) by moving the glass from side to side and then tighten the bolts.

   Courtesy of HYUNDAI MOTOR AMERICA

4. Check the glass for normal operation.
