Door Position Adjustment
Information

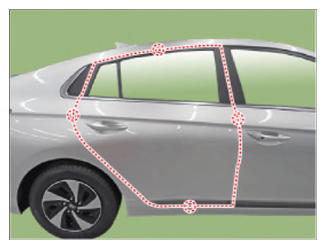

- After installing the rear door, check that the body fits flush with/parallel to all the edges of front door. Check that the door and body edges are parallel. Before adjusting, replace the mounting bolts.
- Check that the door and body edges are parallel.
- Place the vehicle on a firm, level surface when adjusting the doors.

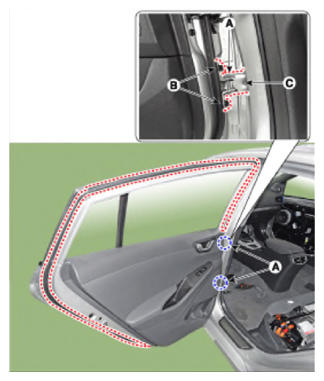

- Adjust the hinges (A):
- Loosen the door mounting bolts slightly, and move the door in or out until it aligns flush with the body.
- Loosen the hinge mounting bolts slightly, and move the door backward or forward, up or down as necessary to make the gaps equal.
- Place a shop towel on the jack to prevent damage to the door when adjusting the door.
Tightening torque:
(B): 21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 -19.5 lb-ft)
(C): 37.3-41.2 N.m (3.8-4.2 kgf.m, 27.5-30.4 lb-ft)
- Grease the pivot portions of the hinges indicated by the arrows.
- Check for water leaks.
