Repair Procedures: Replacement
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Be careful not to scratch the door trim and other parts.

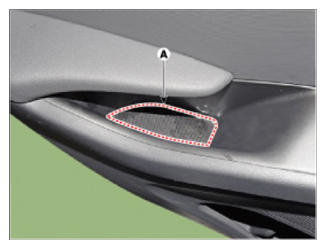

- Using a screwdriver or remover, remove the rear door pull cap (A).

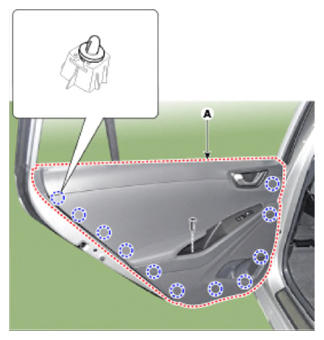

- After loosening the mounting screws, remove the rear door trim (A).

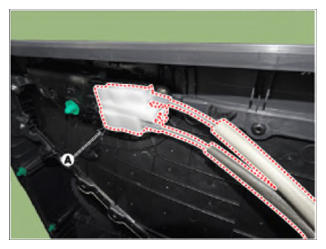

- Remove the rear door inside handle cage (A).

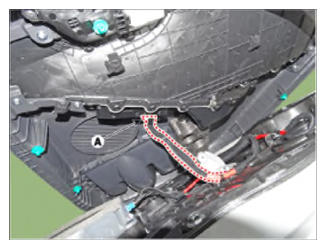

- Disconnect the power window switch connector (A).
- To install, reverse the removal procedure.
Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Replace any damaged clips (or pin-type retainers).
- Make sure the glass moves properly.
