Repair Procedures: Replacement

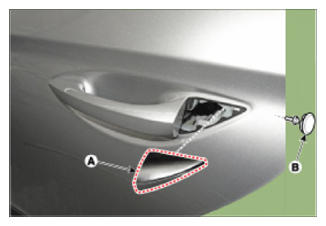

  1. Remove the plug hole (B).
  2. After loosening the mounting bolt, remove the front door lock (A).

    Tightening torque:

    7.8-10.8 N.m (0.8-1.1 kgf.m, 5.8-8.0 lb-ft)

    G13850806Courtesy of HYUNDAI MOTOR AMERICA

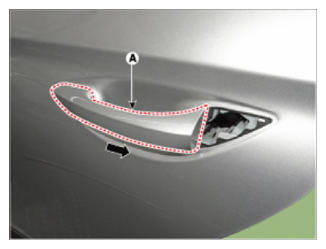

  3. Remove the rear door outside handle (A) by pushing it in the direction of arrow.
    G13850807Courtesy of HYUNDAI MOTOR AMERICA
  4. To install, reverse the removal procedure.

    Information

    • Make sure the door locks/unlocks and opens/closes properly.

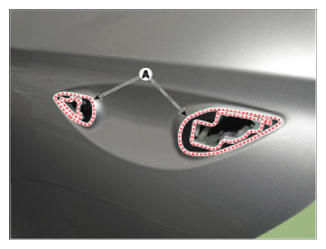

    • Be sure to install the outside handle pad (A) between the outside handle and the door panel.
    G13850808Courtesy of HYUNDAI MOTOR AMERICA
