Repair Procedures: Replacement

Remove the rear door window glass.
(Refer to Rear Door - "REAR DOOR WINDOW GLASS ")
Remove the rear door outside handle.
(Refer to Rear Door - "REAR DOOR OUTSIDE HANDLE ")

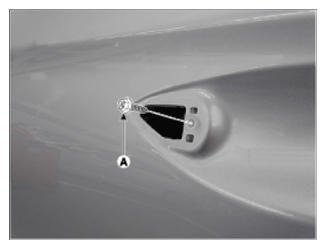

Loosen the rear door outside handle base mounting bolt (A).
Tightening torque:

2.0 - 2.9 N.m (0.2 - 0.3 kgf.m, 1.4 - 2.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

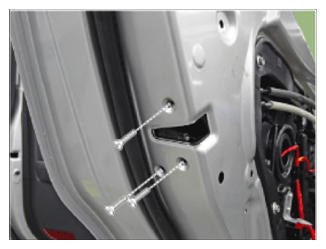

Loosen the rear door latch mounting screws.
Tightening torque:

6.9-10.8 N.m (0.7-1.1 kgf.m, 5.0-8.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

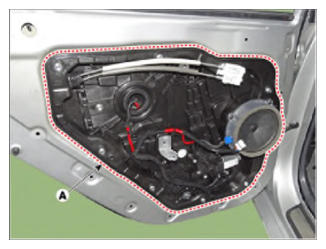

After loosening the mounting bolts, remove the rear door module (A).
Tightening torque:

8.8 -13.7 N.m (0.9 -1.4 kgf.m, 6.5 -10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the rear door latch assembly.
(Refer to Rear Door - "REAR DOOR LATCH ")
Remove the rear speaker.
(Refer to Body Electrical System - "SPEAKERS ")
Remove the rear power window motor.
(Refer to Body Electrical System - "POWER WINDOW MOTOR ")
To install, reverse the removal procedure.
Information
- Make sure connectors are connected properly and each rod is connected securely.
- Make sure the door locks/unlocks and opens/closes properly.
