Repair Procedures: Replacement

Remove the rear door module.
(Refer to Rear Door - "REAR DOOR MODULE ")

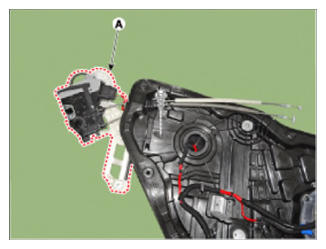

Remove the rear door inside handle cage (A).

Courtesy of HYUNDAI MOTOR AMERICA

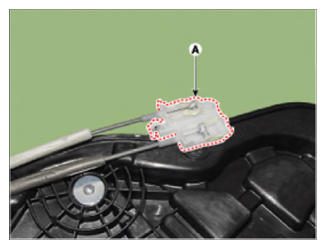

Loosen the mounting bolt and remove the rear door latch (A).

Courtesy of HYUNDAI MOTOR AMERICA

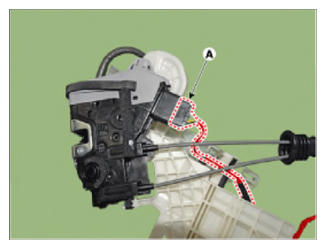

Disconnect the rear door latch connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

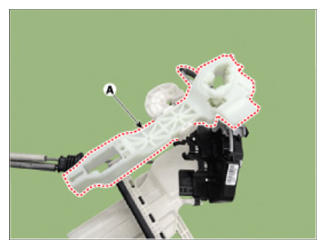

Remove the rear door outside handle base (A) by pushing in the lock pins located in the back.

Courtesy of HYUNDAI MOTOR AMERICA

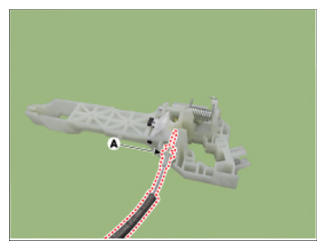

Remove the rear door outside handle cable (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Replace any damaged clips (or pin-type retainers).
