Repair Procedures: Replacement

CAUTION:

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

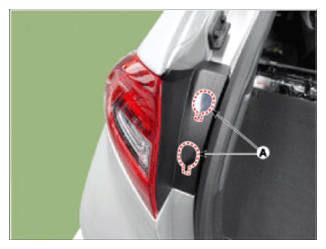

Remove the rear combination cap (A).

Courtesy of HYUNDAI MOTOR AMERICA

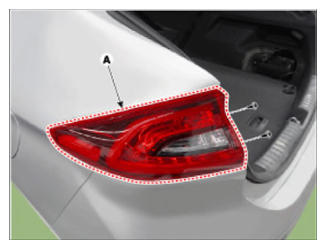

Loosen the mounting screws, remove the rear combination lamp (A).

Courtesy of HYUNDAI MOTOR AMERICA

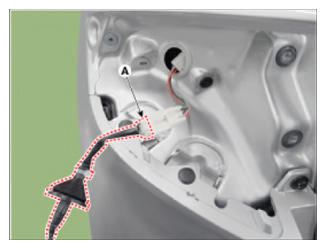

Disconnect the rear combination lamp connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

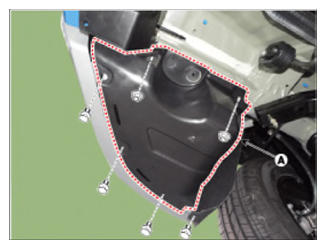

Loosen the mounting clips and nuts, remove the rear bumper retainer cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

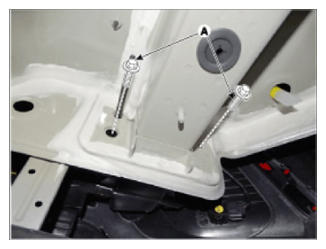

Loosen the mounting bolts.

Courtesy of HYUNDAI MOTOR AMERICA

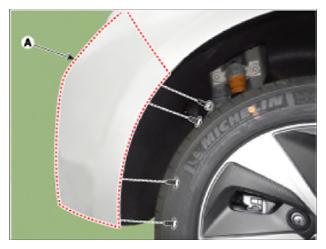

After loosening the pin-type retainers and screws on the side of rear bumper (A), detach the side part of rear bumper.
CAUTION:
- Be careful not to damage the tabs on the side part of front bumper.
Courtesy of HYUNDAI MOTOR AMERICA

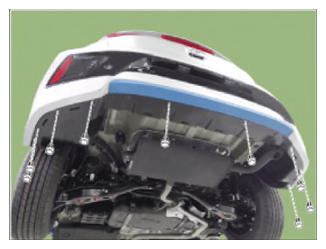

Loosen the rear bumper lower mounting pin-type retainers and nuts.

Courtesy of HYUNDAI MOTOR AMERICA

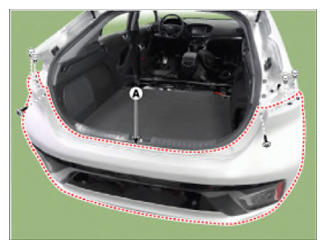

After loosening the mounting screws and clips, remove the rear bumper cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

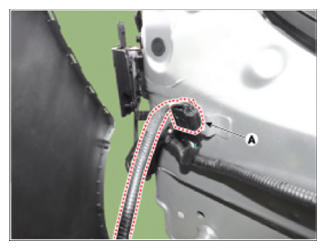

Disconnect the rear bumper connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the connector is plugged in properly.
- Replace any damaged clips (or pin-type retainers).
