Repair Procedures: Replacement

CAUTION:

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the front bumper cover.
(Refer to Front Bumper - "FRONT BUMPER COVER ")

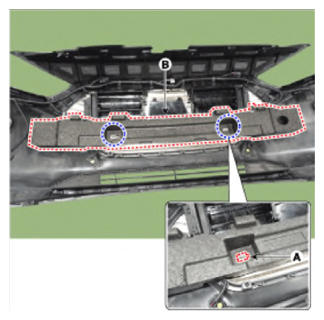

Remove the fixing clip (A) and then the front bumper energy absorber (B).

Courtesy of HYUNDAI MOTOR AMERICA

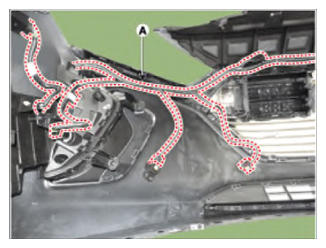

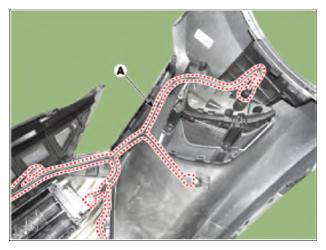

Separate the front bumper wiring (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

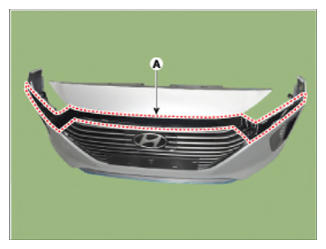

After loosening the mounting screws, remove the radiator grille upper cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

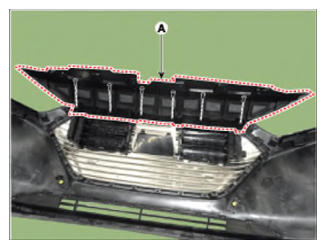

After loosening the mounting screws, remove the radiator upper garnish (A).

Courtesy of HYUNDAI MOTOR AMERICA

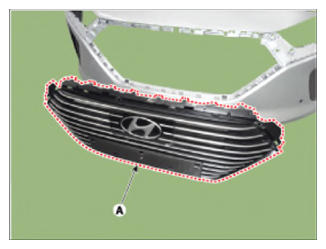

After loosening the mounting screws, remove the radiator grille (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

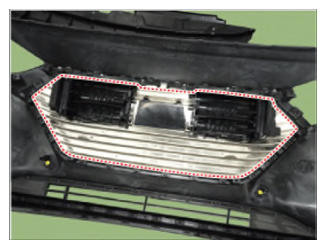

Remove the active air flap
(Refer to Engine Mechanical System - "ACTIVE AIR FLAP ")
To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
