Repair Procedures: Replacement
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Take care not to bend or scratch the trim and panels.

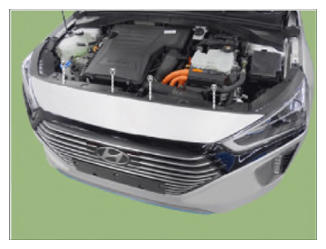

- Loosen the bolts of the front bumper upper.

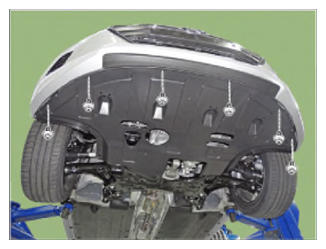

- Loosen the front bumper lower mounting clips.

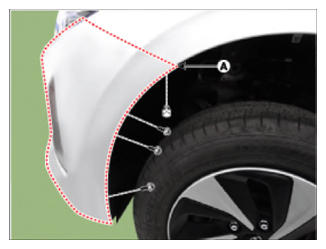

- After loosening the pin-type retainers and screws on the side of front bumper (A), detach the side part of front bumper.CAUTION:
- When you pull out the front bumper, the side part of the front bumper could be damaged by the projection.

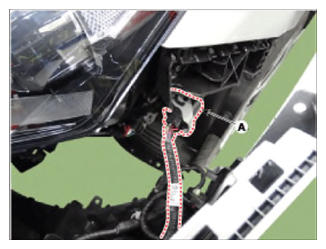

- Disconnect the front bumper connector (A).

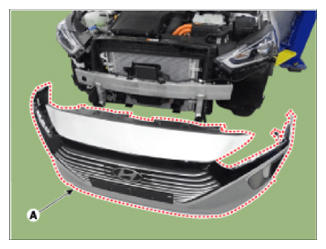

- Remove the front bumper cover (A).
- To install, reverse the removal procedure.
Information
- Make sure the connector is plugged in properly.
- Replace any damaged clips (or pin-type retainers).
