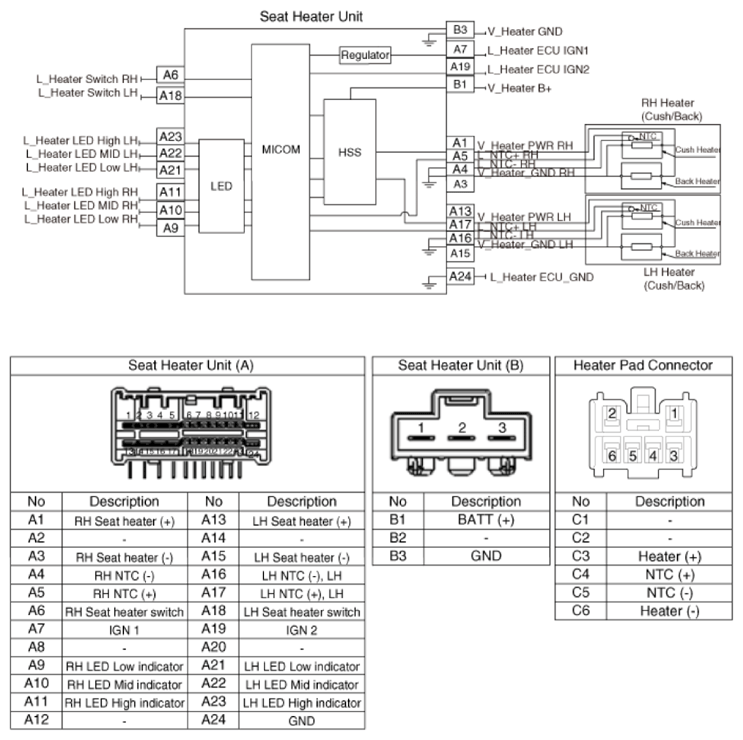

Home >> Hyundai >> 2021 >> Ioniq Hybrid SEL >> Repair and Diagnosis >> Accessories & Equipment >> Seats >> Seat Electrical (HEV) >> Seat Heater >> Schematic Diagrams >> Circuit Diagram >> Front Seat Heater (Non-Air Ventilation)
