Rear Seat Heater

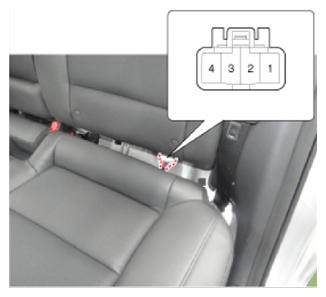

- Check for continuity and measure the resistance between terminals No 1 and No 4.
Standard value
Rear seat: 3.16Ω±10%/20°C
- Operate the seat heater after connecting the connector, and then check the thermostat by measuring the temperature of seat surface.
Standard value
High (Cushion): 38±2°C
Low (Cushion): 42±2°C
