Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

  3. Remove the seat back.

    (Refer to Body - "FRONT SEAT BACK COVER ")

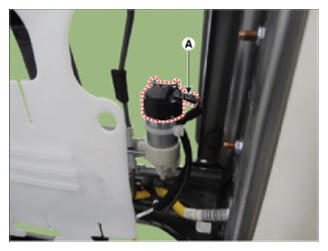

  4. Disconnect the lumber support motor connector (A).
    G13851414Courtesy of HYUNDAI MOTOR AMERICA

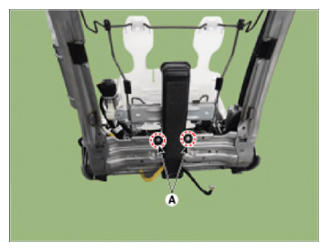

  5. Separate the retaining clips (A) from the seat frame.
    G13851415Courtesy of HYUNDAI MOTOR AMERICA

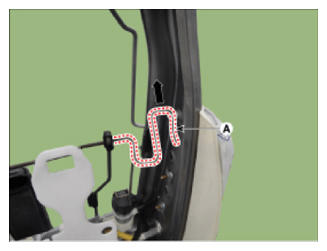

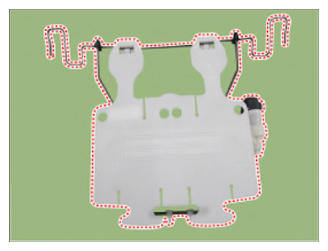

  6. Remove the lumber support assembly after disengaging mounting clip (A).
    G13851416Courtesy of HYUNDAI MOTOR AMERICA
    G13851417Courtesy of HYUNDAI MOTOR AMERICA
