Lumbar Support Motor

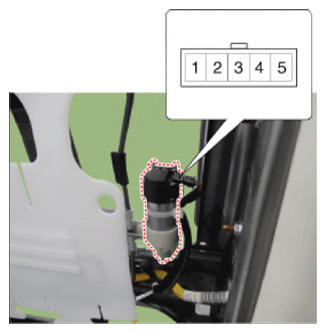

G13851418Courtesy of HYUNDAI MOTOR AMERICA
  1. With the battery connected directly to the motor terminals, check if the motors run smoothly.
  2. Reverse the connections and check that the motor turns in reverse.
  3. If there is an abnormality, replace the motors.
    G13851419Courtesy of HYUNDAI MOTOR AMERICA
