Ventilation Seat Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

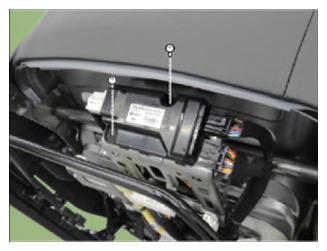

  3. Loosening the screws from the ventilation seat unit.
    G13851383Courtesy of HYUNDAI MOTOR AMERICA

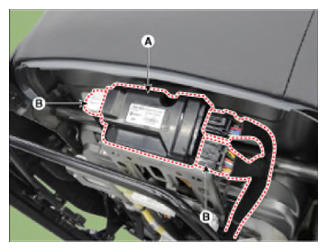

  4. Remove the ventilation seat unit (A) after disconnect the connectors (B).
    G13851384Courtesy of HYUNDAI MOTOR AMERICA
